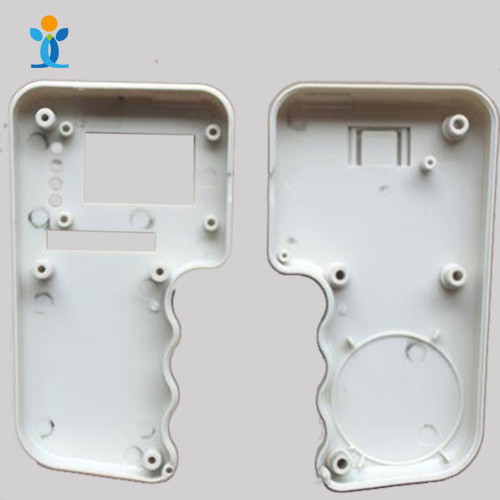

Description
Production details:
|
Type: |
Plastic injection molding |
Core surface finish: |
polish |
|
Production Material: |
ABS/PC |
Cavity surface finish: |
Glass polish |
|
No of Cavities: |
1x 1 |
Injection System |
Cold Runner |
|
Core Material: |
P20 with heat treated |
Type of gating: |
Direct gate |
|
Cavity Material: |
P20with heat treated |
Cycle time: |
50 s |
|
Slider material: |
P20 with heat treated |
Lead time for Production |
10 days |
|
Cooling: |
Hot oil |
Mold life: |
100 000 |
|
Place of Origin |
China |
Packaging: |
Air bubble bags and Carton |
Product Characters
1. Fireproof V0 grade resin
2. IP65 rating,water proof and dust proof.
3. Operating Temperature:-20℃ to 90℃.
4. High glossy finish
5. Running CPK for critical dimension
6. Low cost prototype mould with low volume production.
What is an IP Rating?
IP rating is also known as Ingress Protection or International Protection ratings which are defined to the international standard of EN 60529 (British BS EN 60529:1992). This standard is used to define the levels of sealing effectiveness of electrical enclosures against intrusion from foreign bodies such as tools, dirt and moisture.
What do the two digits in an IP Rating mean?
The rating consists of the letters IP followed by two digits, if a number is replaced by X this indicates that the enclosure is not rated for that specification.
|
First Digit |
Intrusion Protection |
Second Digit |
Moisture Protection |
|
0 |
No protection. |
0 |
No protection. |
|
1 |
Protected against solid objects over 50mm, e.g. accidental touch by hands. |
1 |
Protected against vertically falling drops of water, e.g. condensation. |
|
2 |
Protected against solid objects over 12mm, e.g. fingers. |
2 |
Protected against direct sprays of water up to 150 from the vertical. |
|
3 |
Protected against solid objects over 2.5mm, e.g. tools & wires. |
3 |
Protected against direct sprays of water up to 600 from the vertical. |
|
4 |
Protected against solid objects over 1mm, e.g. wires & nails. |
4 |
Protected against water splashed from all directions, limited ingress permitted. |
|
5 |
Protected against dust limited ingress, no harmful deposits. |
5 |
Protected against low pressure jets of water from all directions, limited ingress permitted. |
|
6 |
Totally protected against dust. |
6 |
Protected against strong jets of water, e.g. on ships deck, limited ingress permitted. |
Contact Yixing plastic for more information about getting a quote, placing an order, or for finding solutions to your application.
